Brand Name : YUEXIN
Place of Origin : Guangdong, China
Model Number : JL-QF10C-100L
MOQ : 1
Price : $4,931.71-5,479.68
Weight : 85kg
Power supply : 220V 50Hz
Max load : 30kg
Control type : Touch Screen Control
Dimension : 820x650x1250mm
Inner Size : φ500*H500mm
External dimensions : L610*D780*H1050mm
Wall thickness : 8mm
Tank Material : 304 stainless steel
Flange thickness : 20mm
Pressure error : ±0.002 Mpa
Pressure accuracy : 0.001Mpa
Test water depth : 0--10m
Pressure range : 0--0.1Mpa
Safety valve pressure : 0.15Mpa
Test time : 0-999min/h
Voltage : 220V
Power : 0.1KW
Model | YX-JL-QF10-100L |
Inner Size | φ500*H500mm |
External dimensions | L610*D780*H1050mm |
Wall thickness of the Tank | 8mm |
Tank Material | 304 stainless steel material |
Flange thickness | 20mm |
Flange Material | 304 stainless steel material |
Equipment weight | About 60KG |
Pressure control mode | Automatic adjustment |
Pressure error value | ±0.002 Mpa |
Pressure display accuracy | 0.001Mpa |
Test water depth | 0—10m |
Pressure adjustment range | 0—0.1Mpa |
Exhaust pressure of the safety valve | 0.15Mpa |
Test time | 0-999min/h |
Air intake mode | Adjust the pressure regulating valve manually |
Voltage(V) | 220V |
Power(KW) | 0.1KW |
Standard | IEC60529:1989+A1:2013,IEC60529;IEC60598;ISO20653 |
![]() |

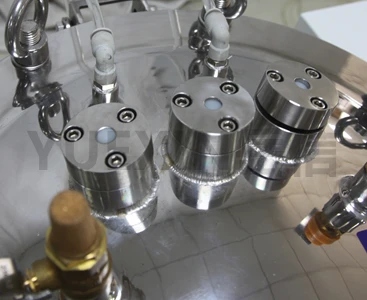

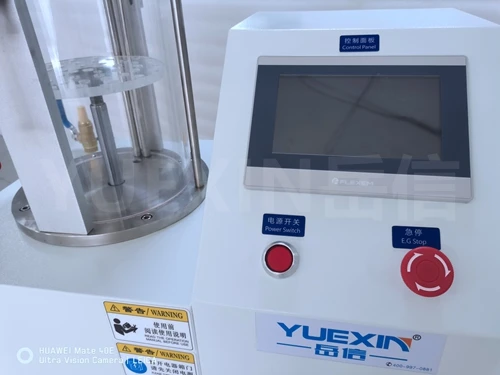

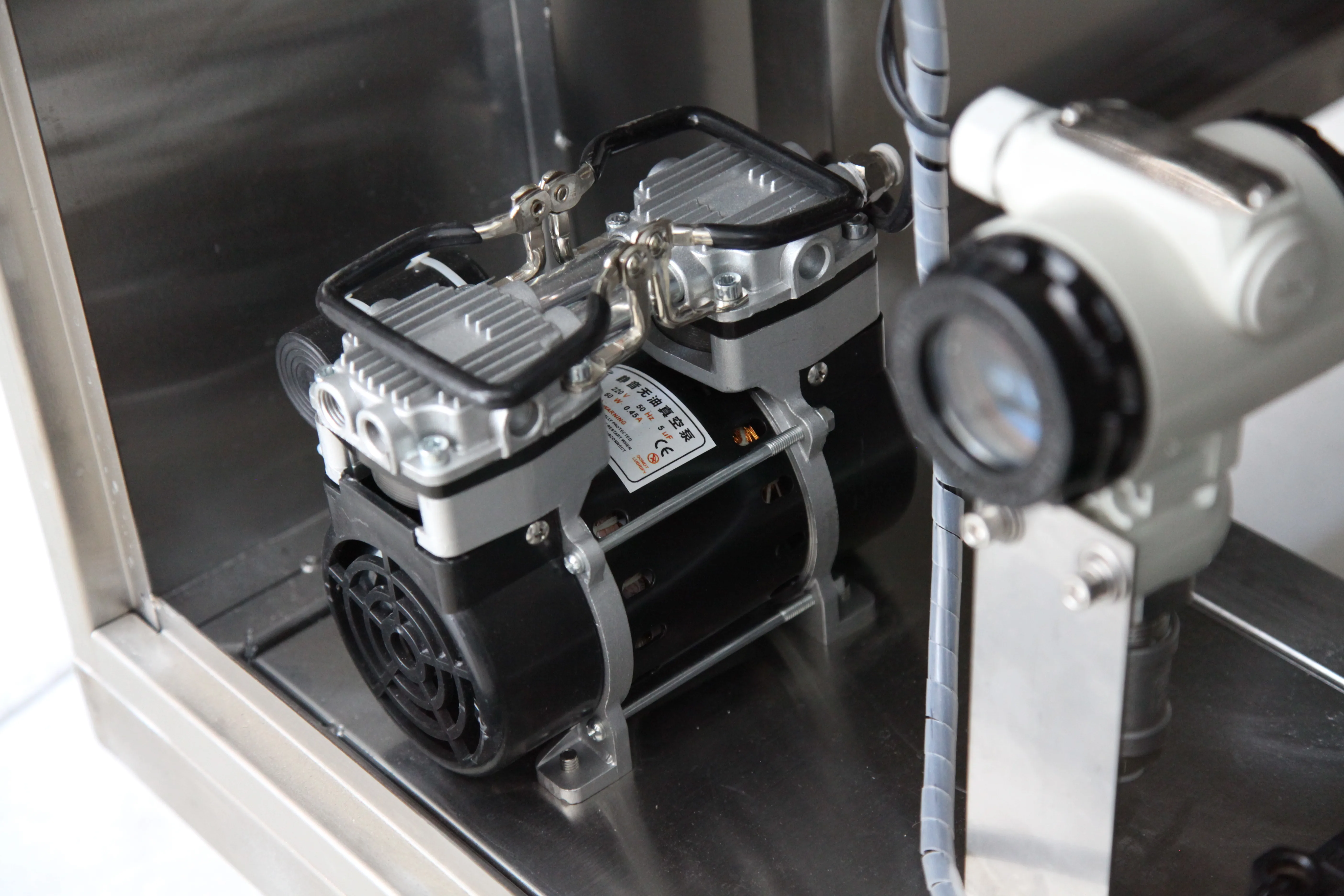

10ATM Waterproof Test Instrument with 10m Water Pressure and 304 Stainless Steel Construction Images |
