Brand Name : YUEXIN
Place of Origin : Guangdong, China
Model Number : YX-JL-Q50-10L-91
MOQ : 1
Price : $8,762.27-9,957.12
Power supply : 220V 50Hz
Weight : 50kg
Material : Acrylic
Control type : Touch Screen Programmable Controller
Dimension : 960*690*1250(mm)
Inner size : φ500*H500mm
External dimensions : L610*D780*H1050mm
Wall thickness : 3mm
Tank material : 304 stainless steel
Flange thickness : 20mm
Flange material : 304 stainless steel
Pressure error : ±0.002 Mpa
Pressure accuracy : 0.001Mpa
Test water depth : 0--30m
Pressure range : 0--0.3Mpa
Model | YX-JL-QF30-100L |
Inner Size | φ500*H500mm |
External dimensions | L610*D780*H1050mm |
Wall thickness of the Tank | 3mm |
Tank Material | 304 stainless steel material |
Flange thickness | 20mm |
Flange Material | 304 stainless steel material |
Equipment weight | About 70KG |
Pressure control mode | Automatic adjustment |
Pressure error value | ±0.002 Mpa |
Pressure display accuracy | 0.001Mpa |
Test water depth | 0—30m |
Pressure adjustment range | 0—0.3Mpa |
Exhaust pressure of the safety valve | 0.35Mpa |
Test time | 0-999min/h |
Air intake mode | Adjust the pressure regulating valve manually |
Voltage(V) | 220V |
Power(KW) | 0.1KW |
Standard | IEC60529:1989+A1:2013,IEC60529;IEC60598;ISO20653 |
![]() |

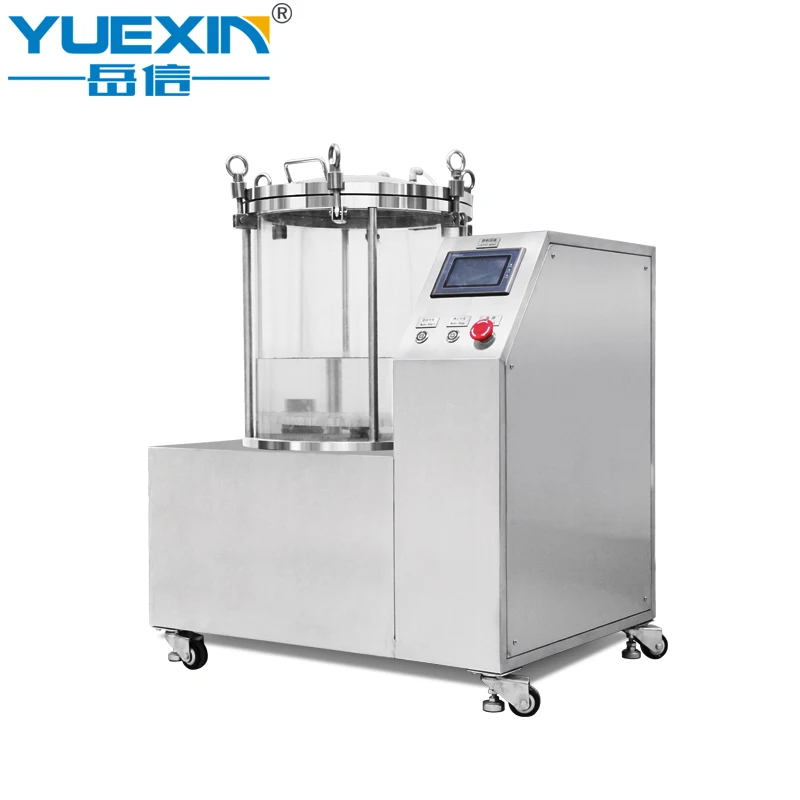

Professional Waterproof Test Equipment with IEC60529 Standard 220V Power Supply and 0-30m Test Water Depth Images |
