IEC60068 Standard IPX7 Waterproof Test Chamber with LED Light and 1 Year Warranty for Water Soaking Tests

Name: IEC60068 Standard IPX7 Waterproof Test Chamber with LED Light and 1 Year Warranty for Water Soaking Tests
Brand: YUEXIN
Price: 20 USD

Quality IEC60068 Standard IPX7 Waterproof Test Chamber with LED Light and 1 Year Warranty for Water Soaking Tests for sale

Brand Name : YUEXIN

Place of Origin : Guangdong,china

Model Number : YX-IPX7

MOQ : 2

Price : $20,000-30,000

Inner Size : L600*D600*H1200mm

External dimensions : L745*D680*H1350mm

Maximum test depth : 1.1 m

Inner box thickness : 1.5mm

Observation window thickness : 12mm

Observation window width : 200mm

Water level accuracy : 1mm

Rack material : Stainless steel

Water stop valve : Installed

Inlet/outlet valve : Manually adjustable

Water level display : Stainless steel ruler

Chassis material : Stainless steel

Casters type : Heavy-duty

Power type : Electronic

Temperature range : Room Temperature

Contact Now

Product Description

IEC60068 Standard IPX7 Waterproof Test Chamber with LED Light and 1 Year Warranty for Water Soaking Tests

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

FAQ

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Product characteristics

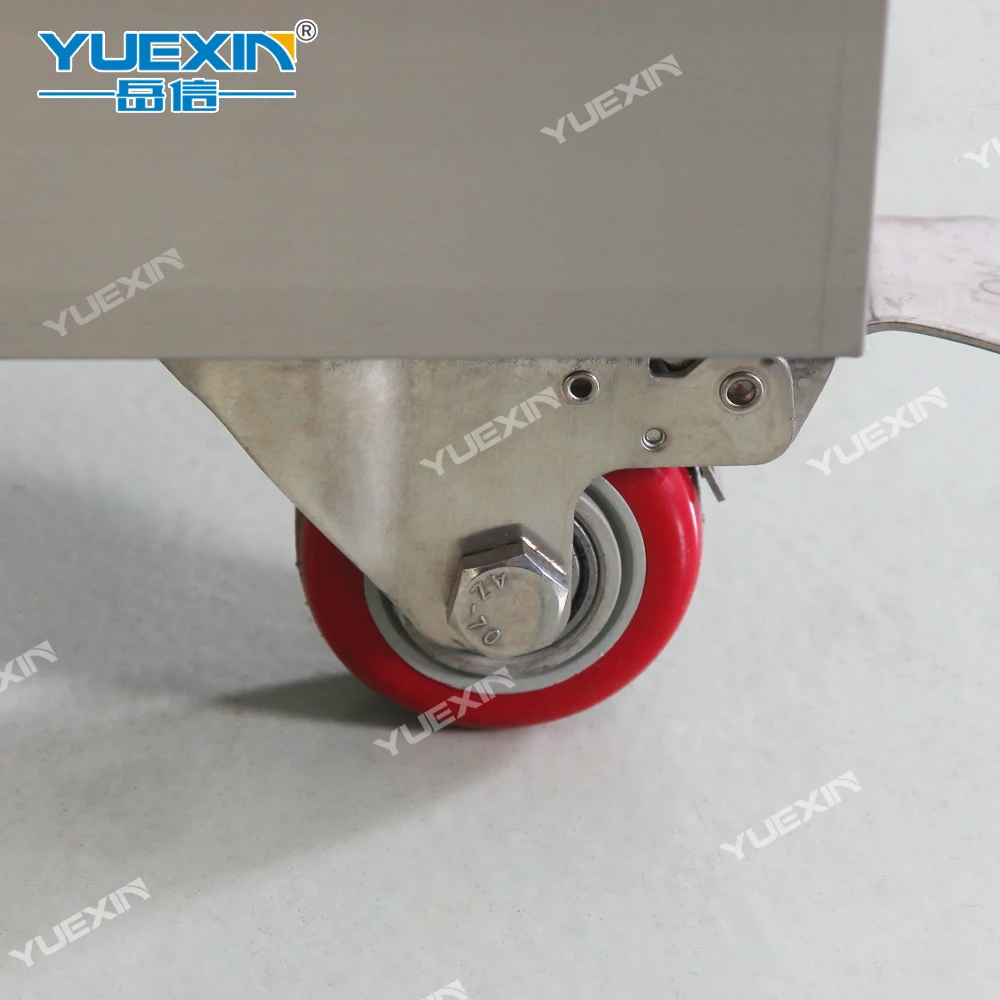

casters.

The stainless steel chassis is equipped with heavy-duty casters and foot cups for easy movement and fixation.

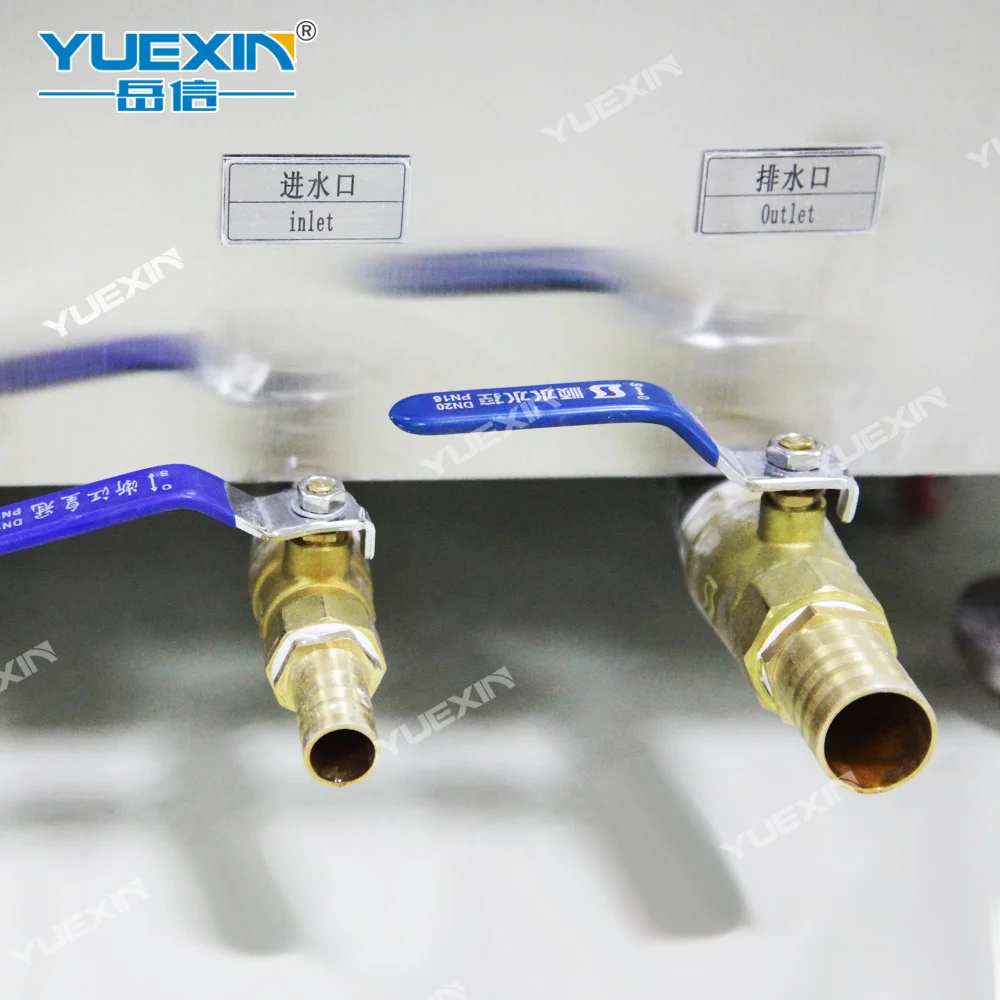

inlet and outlet .

The water inlet and outlet pipes are installed under the water tank, which is convenient for users to install and drain.

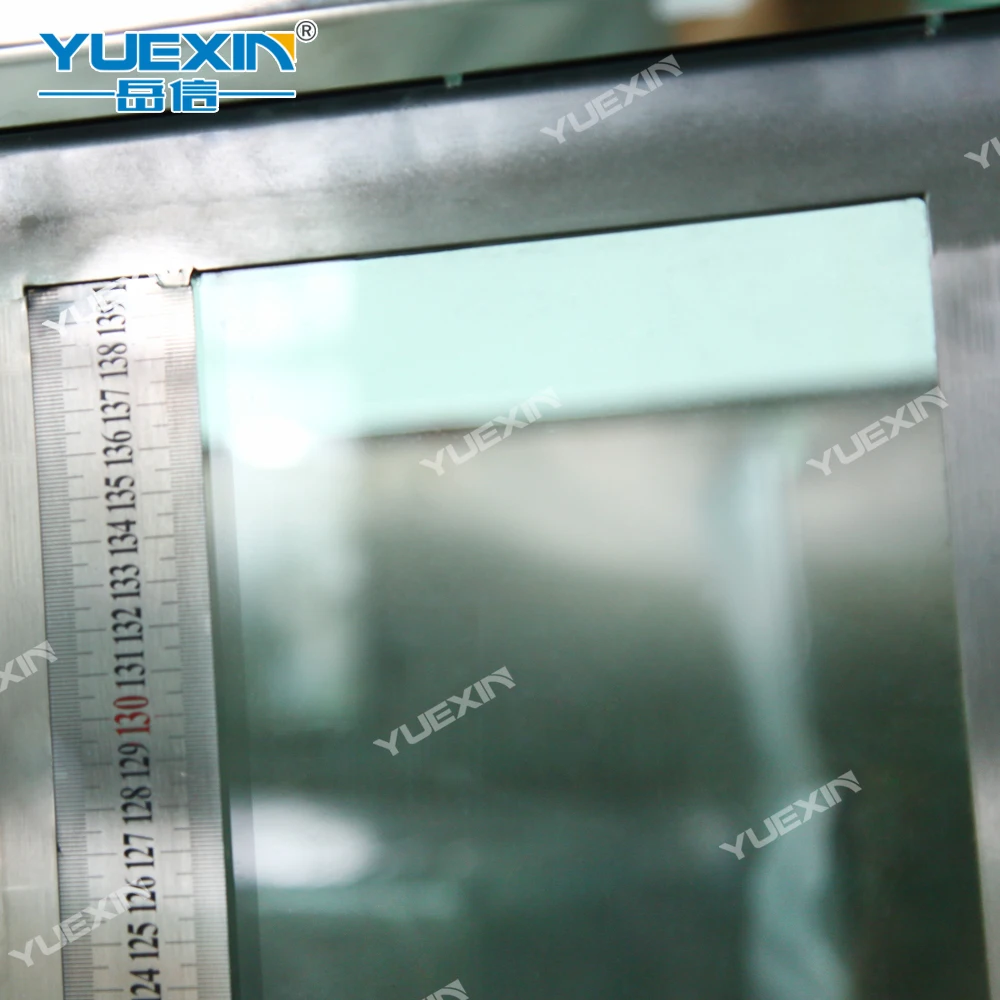

stainless steel ruler.

The water tank is equipped with a stainless steel ruler (accuracy 1mm), which is horizontal and visual, and it is convenient to check the water level.

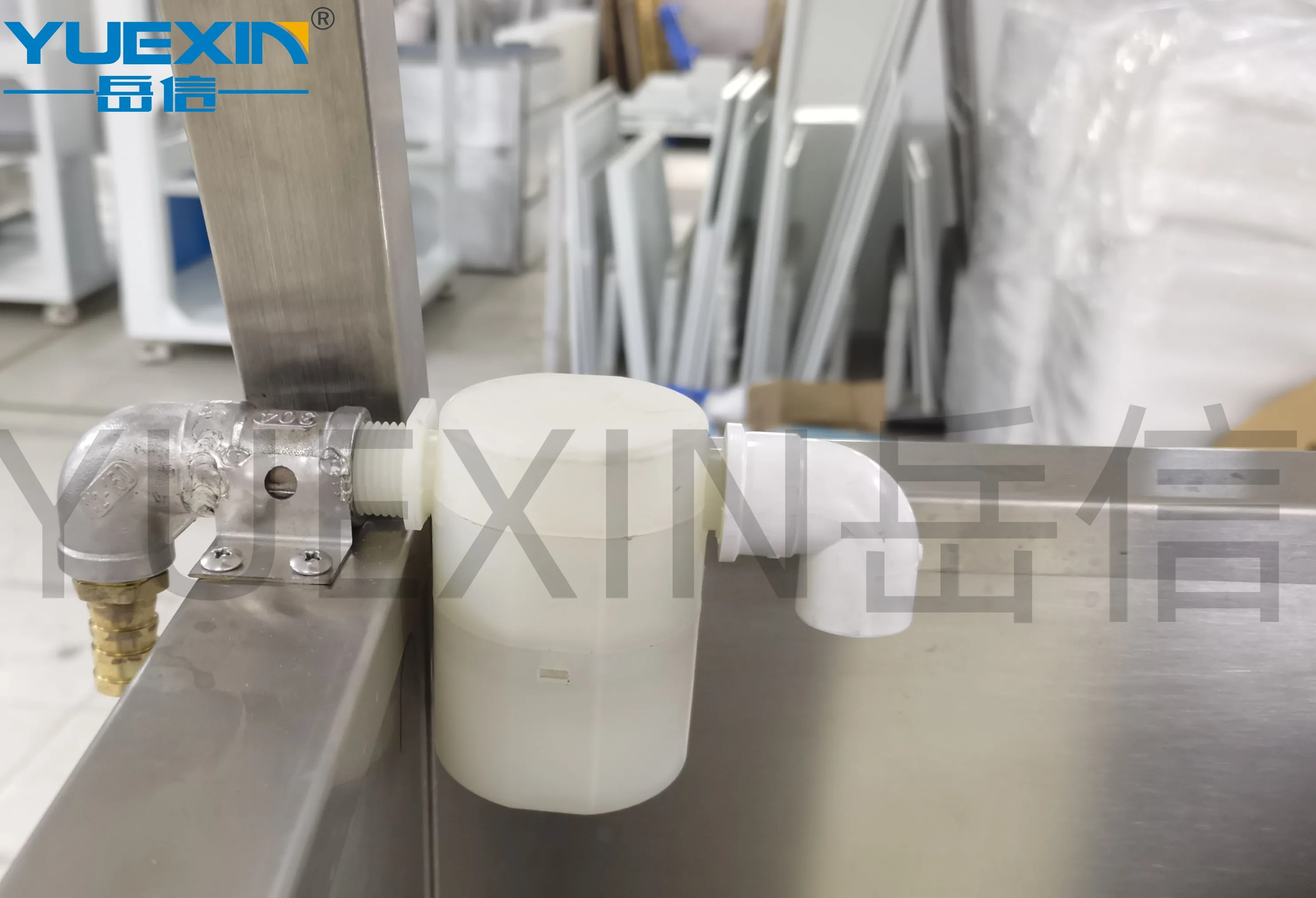

water stop valve.

A water stop valve is installed on the top of the water tank to prevent unattended water from overflowing.

Specification

Equipment function: The main function of this device is to test the physical and other related performance of electronic, electrical products, lamps, cabinets, electrical components, automobiles, motorcycles, and their components under simulated immersion climate conditions. After testing, the performance of the product is determined through verification to determine whether it meets the requirements, in order to facilitate product design, improvement, verification, and factory inspection.

Model	YX-IPX7B-432L
Inner Size	L600D600H1200mm
External dimensions	L745D680H1350mm
Maximum test water depth	1.1 m
Inner box thickness	1.5mm
Observation perspective window	Tempered glass (thickness: 12mm)
Observation window width	200mm
Water level adjustment method	Water level adjustment method
Fixing method of spray gun	Inlet/outlet valve, manually adjustable
Water level display	Stainless steel ruler (accuracy 1mm), horizontal visual inspection
Rack material	Stainless steel square joint
Standard	IEC60529:1989+A1:2013,;ISO20653;IEC60598;DIN40050(IPX7)

Company Profile

Guangzhou Yuexin Test Equipment Co., LTD., established in 2013, covers an area of 2350 square meters and employs approximately 50 people.

We have rich experience in the test equipment industry. In the last decade, we are delicated to provide IP waterproof testing, IP dustproof testing and other environmental testing equipments.

We are a manufactuer with a professional R&D team,which enables us to customize the product as per requirements.

We have a excellent after-sales service team that can respond and provide solutions quickly.

We are the nominated supplier of BYD, DJI, CATL and other companies, and our products are sold worldwide.

We have been granted 25 patents and passed the Quality management system:ISO9001.

We enjoy a reliable reputation among customers with professional service, quality products and competitive prices.

The main products are IPX1/2 dripping test chamber, IPX3/4 rain test chamber, IPX5/6 water spray test chamber, IPX7/8 immersion testing machine, IPX9K high pressure spray test chamber and IP5/6X dustproof test chamber, etc.

Warmly welcome you to visit our factory!

FAQ

1. Are you manufacturer? Do you offer after-sales service? How can i ask for that?

Yes, We are one of the professional manufacturers of waterproof and dustproof test equipment in China. Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.

If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our
conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48hours.

2. What's the delivery term ?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3.Do you accept customization service? Can i have the LOGO on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can i install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.

5. what languages are supported?
The factory standard equipment supports bilingual Chinese and English. Other languages can be customized according to the needs of users.
